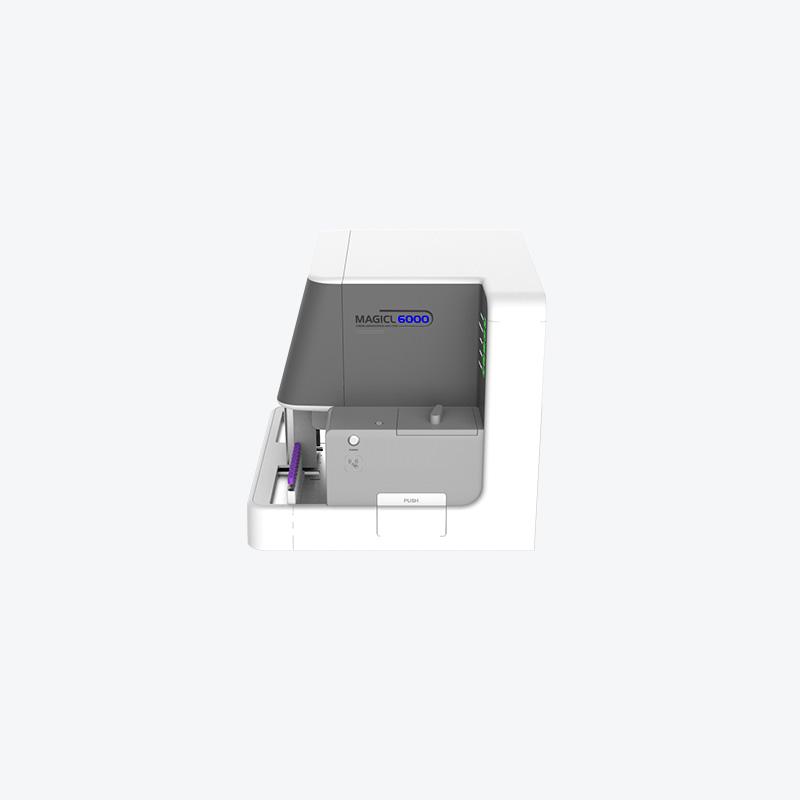

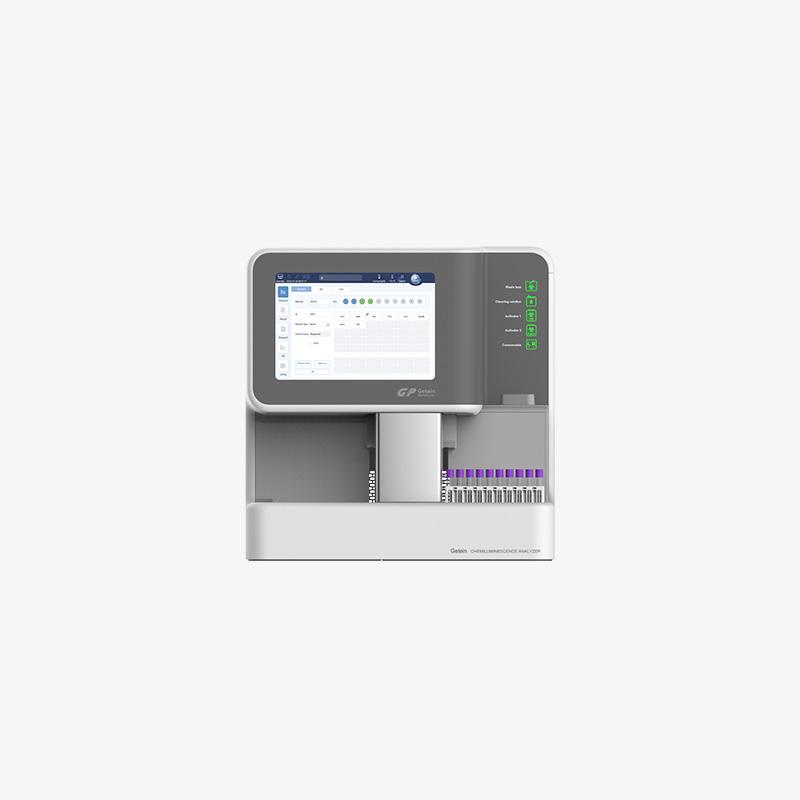

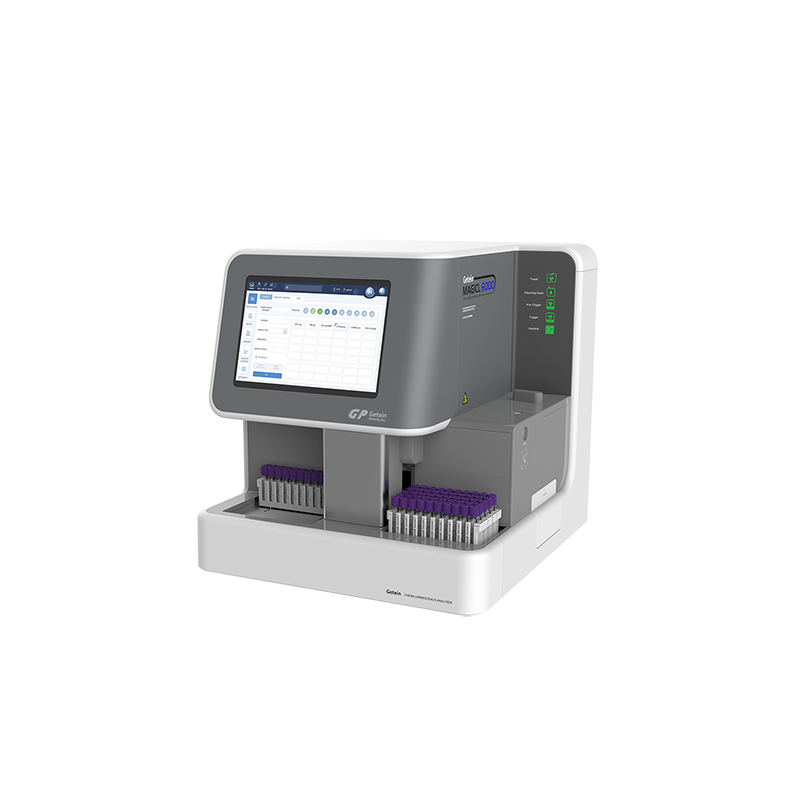

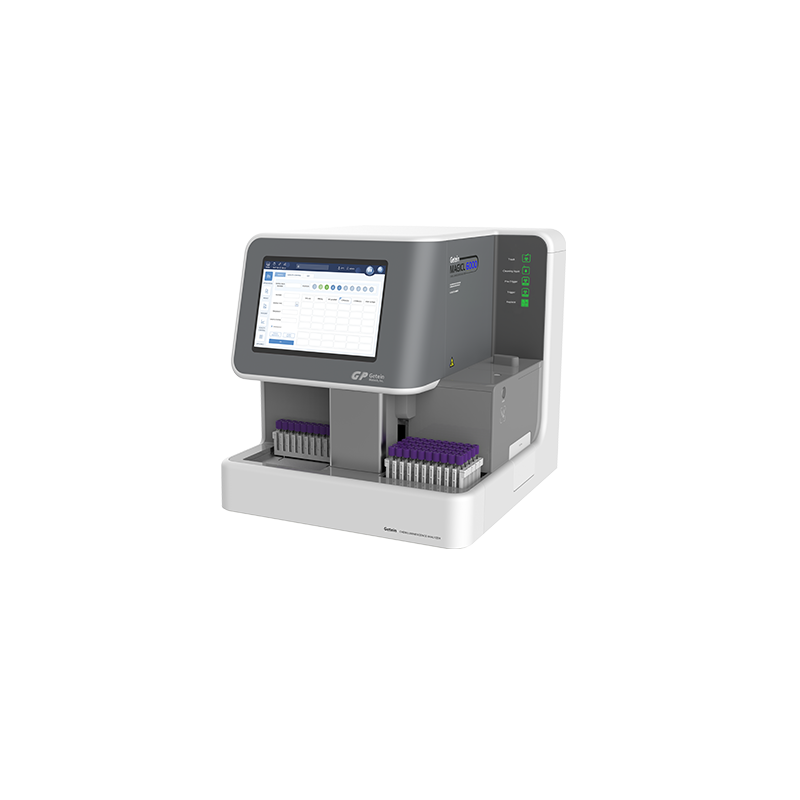

MAGICL 6000, a innovative chemiluminescence immunoassay analyzer, featuring high productivity and compactness, enables fully automated operation and provides the fast testing speed of any device of its size.
Dimensions: 625 * 660 * 690 Mm, 75 Kg
Continuous testing of up to 50 samples one batch with a throughput of up to 150 T/H

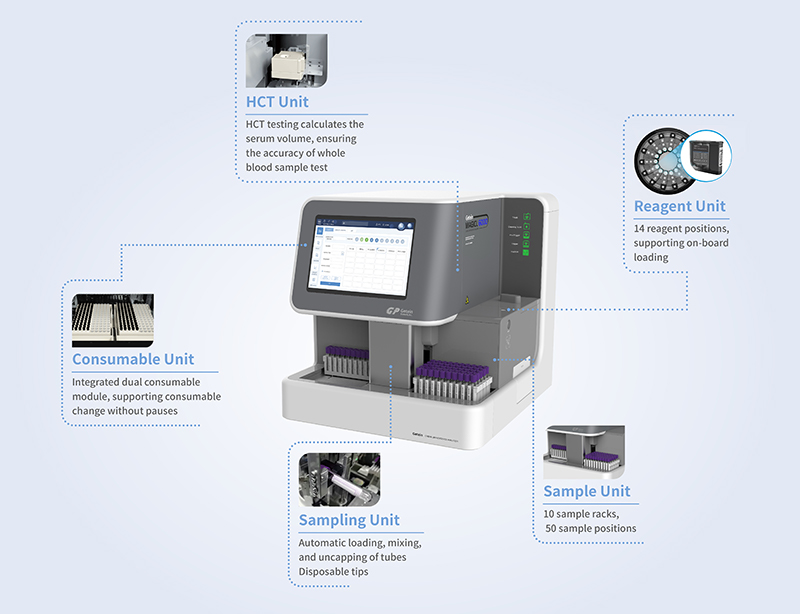

14 reagent positions, meeting different laboratory needs
Fastest test time of 12 minutes for the first sample

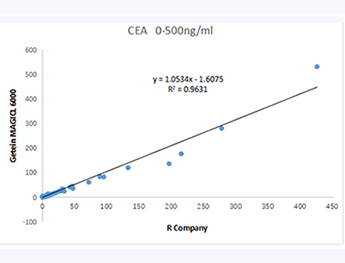

Favorable correlatlon with current mainstream instruments

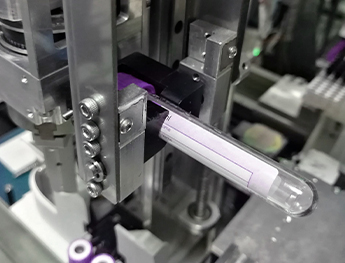

Automatic sample loading, mixing and uncapping, greatly reducing operational difficulties and workloads
Integrated consumables tray, each with 70 disposable tips & 70 reaction cups
Dual-tray design with non-stop replacement of disposable consumables
Pressure sensor recognition of tips, real-time monitoring to avoid interference
Methodology: Acridinium ester direct chemiluminescence
Analysis methods: Sandwich method, competition method

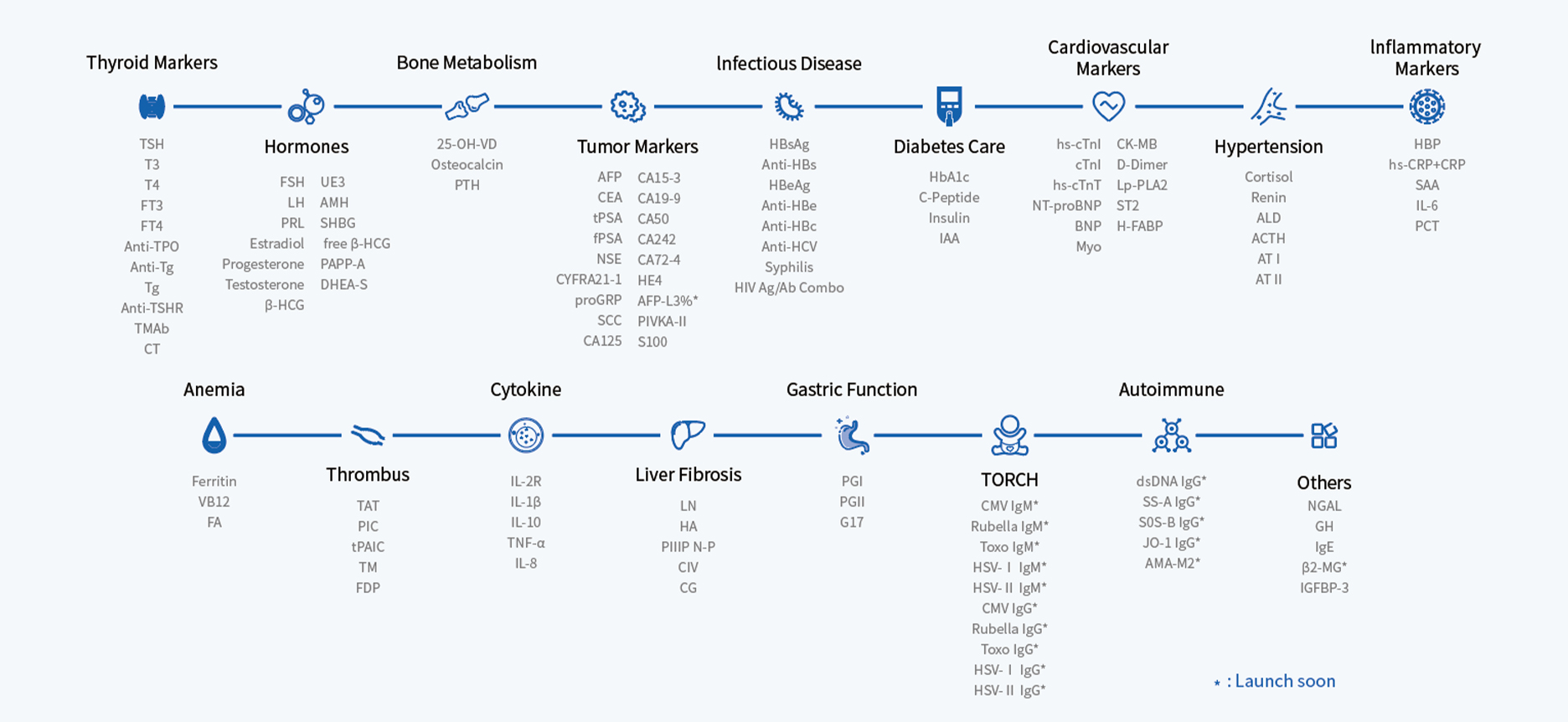

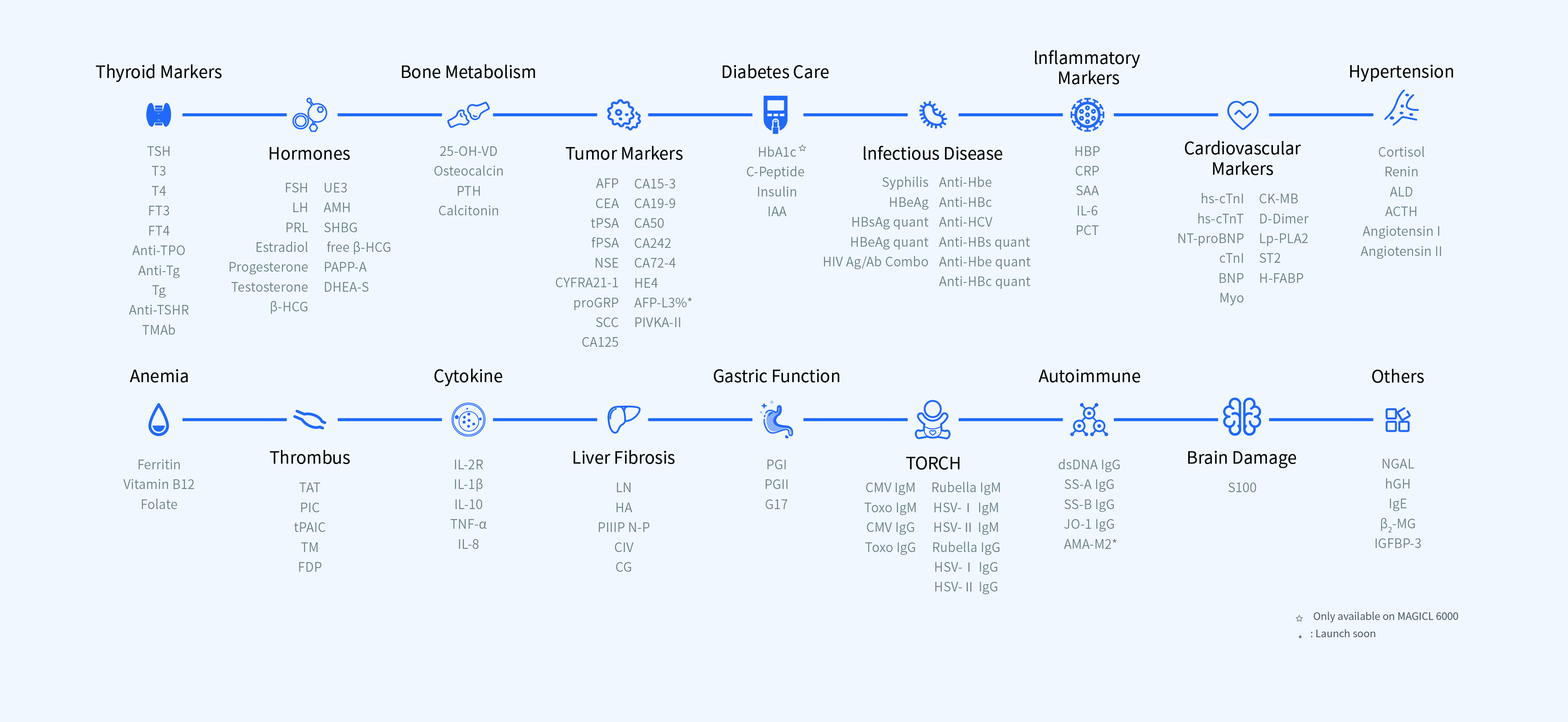

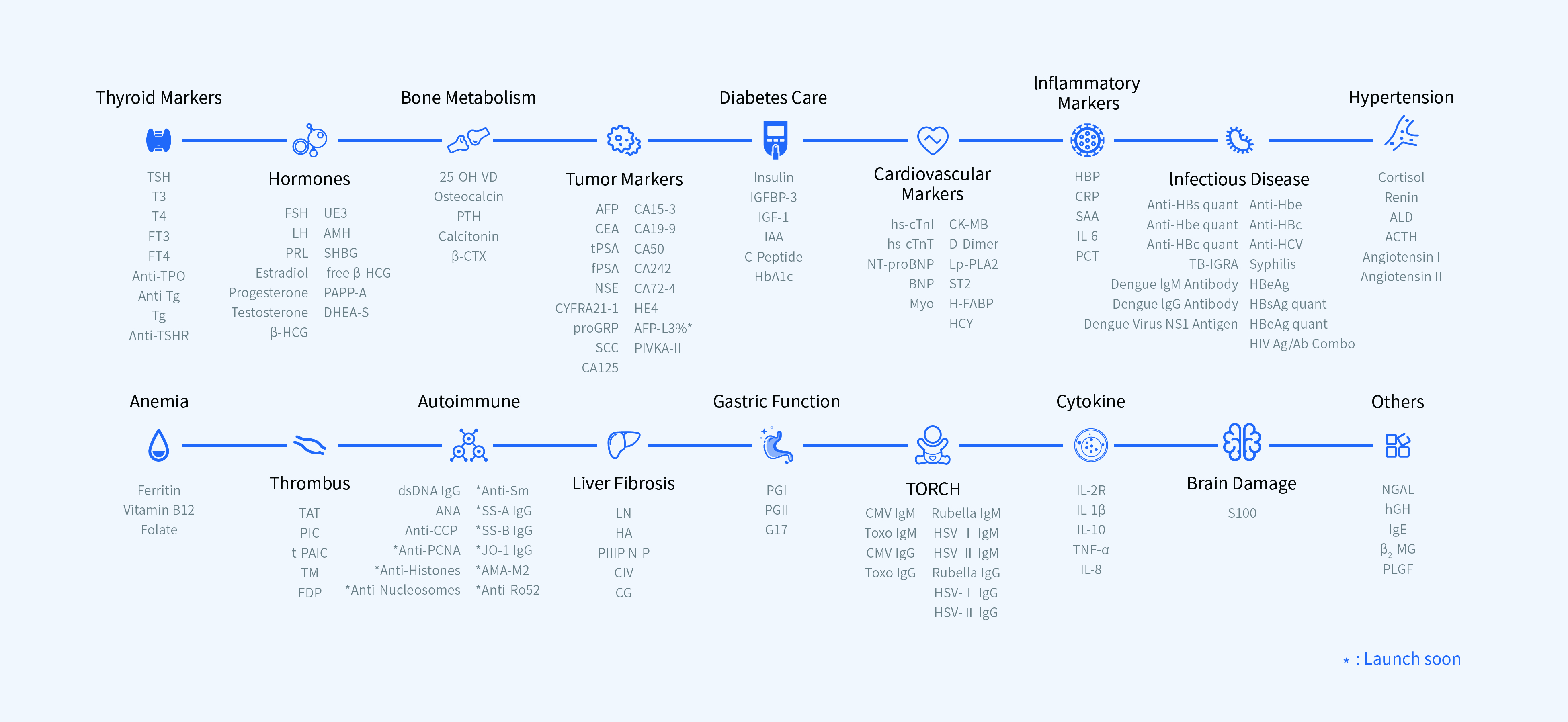

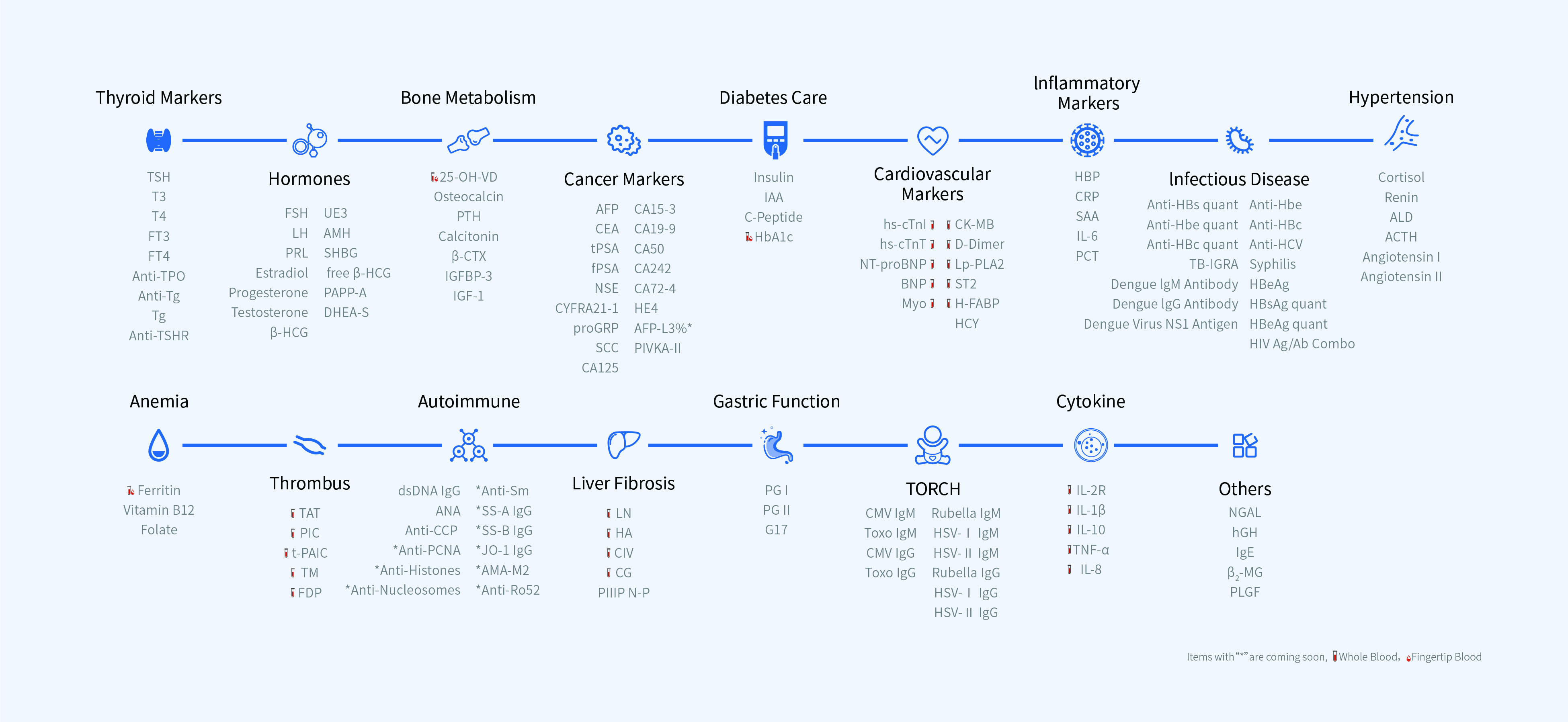

Test Items: 118 items. Up to 85 items tested simultaneously
Test Speed: Up to 400 T/H
Fastest Time for the First Result：12 min
Sample Volume: 10 uL~150 uL (1 uL increment)
Sample Loading：Sample loading by tracks, sample/return/emergency track
Maximum loading capacity: 190 sample positions
Reagent Volume: 10 uL~150 uL (0.1 uL increment)
Reagent Tray: 30 reagent positions
Cooling function: internal air circulation cooling with a range of 4~8℃
Cuvettes：Using mainstream circular cuvettes, up to 2000 can be stored in hopper at a time
Incubation Temperature: 37±0.2°C
Preheating Time：<15 min
Magnetic Separator Cleaning: Four-step magnetic separation, four-step cleaning
Dimensions: 1100 mm (L) x 930 mm (W) x 1200 mm (H)
