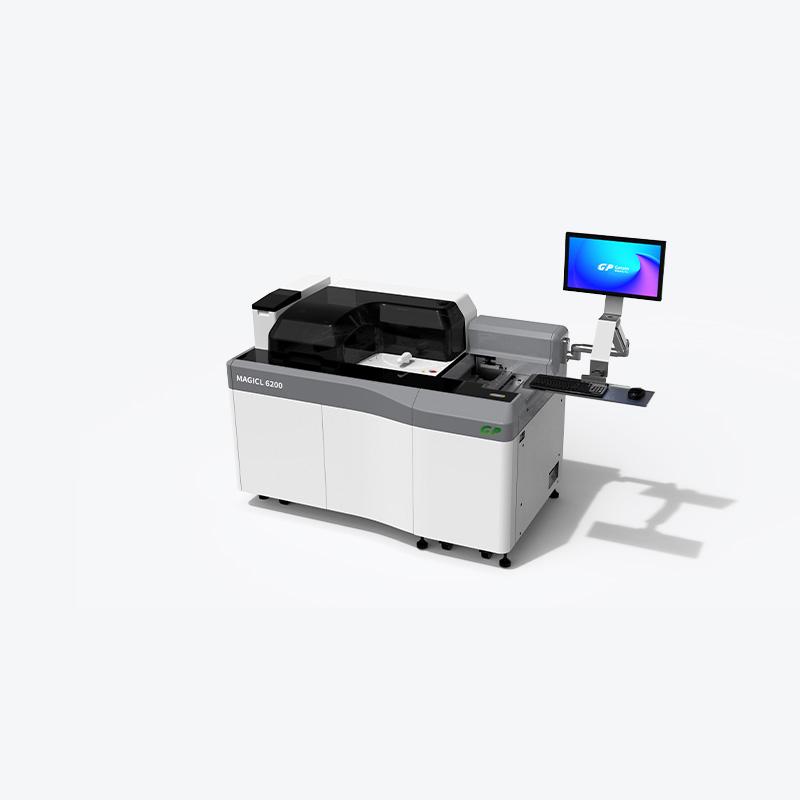

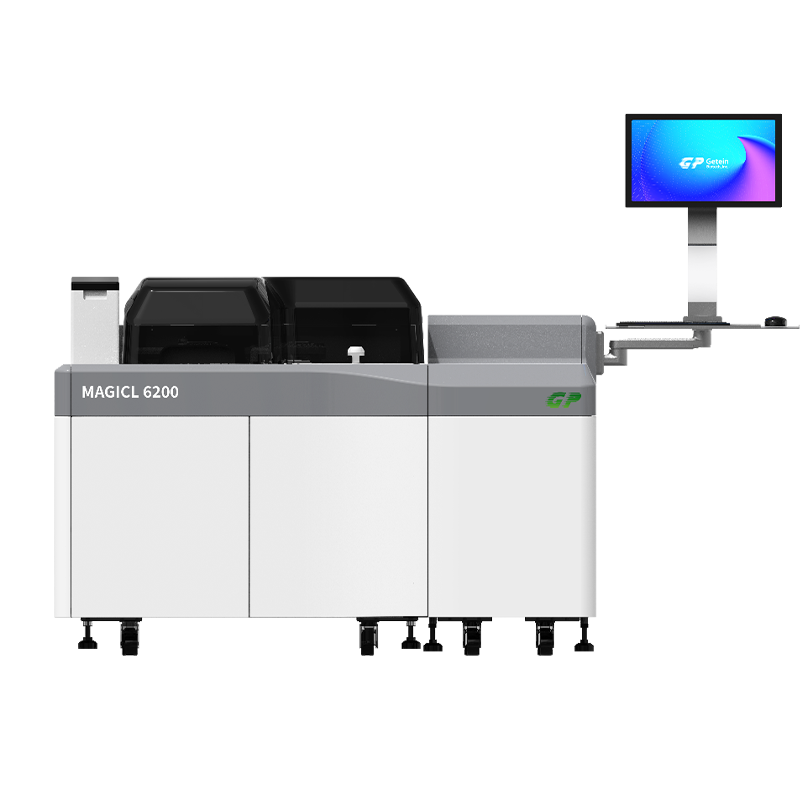

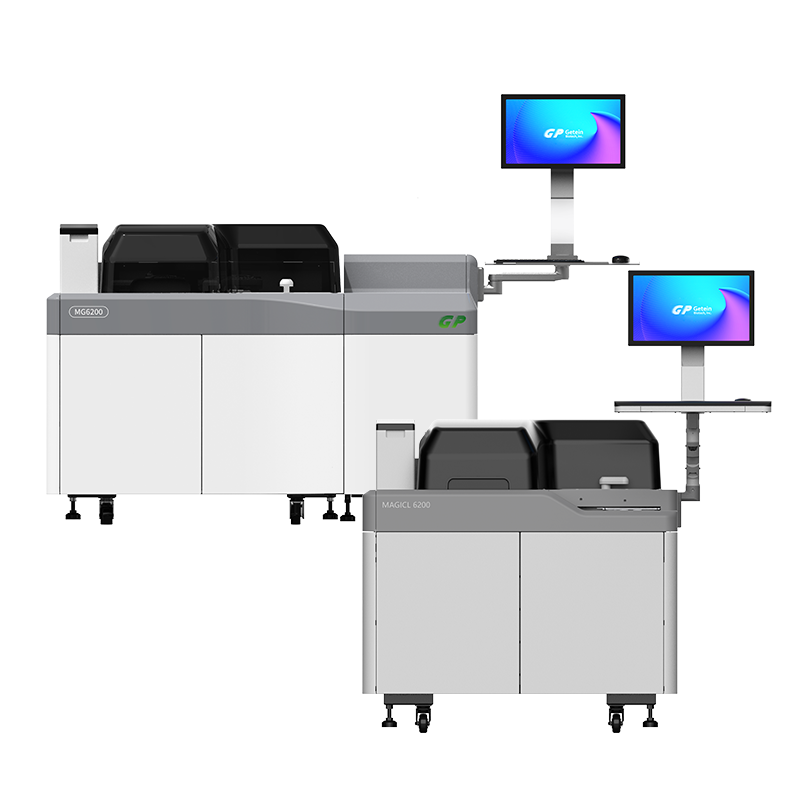

The MAGICL 6200, a high-speed, innovative chemiluminescence immunochemistry analyzer, is perfect for medium to high process laboratories requiring a one-step chemiluminescence solution. MAGICL 6200 is designed not only for the fundamental needs of large laboratories, but also to improve efficiency, productivity and quality.
High throughput at 400 T/H can satisfy needs from different hospitals and laboratories
Compact footprint, maximizing space utilization efficiency
Support expansion of centrifuge and decapper module / analysis modules
Flexible combination of 4 analysis modules at most, fulfilling requirements from multiple laboratories
Automatic sample loading and scanning, automatic weight balanced in centrifuge module without manual operation
Support auto-dilution and auto-retests
Monitor real-time instrument status, testing status, reagent reserve and consumables status
Methodology: Acridinium ester direct chemiluminescence
Analysis methods: Sandwich method, competition method

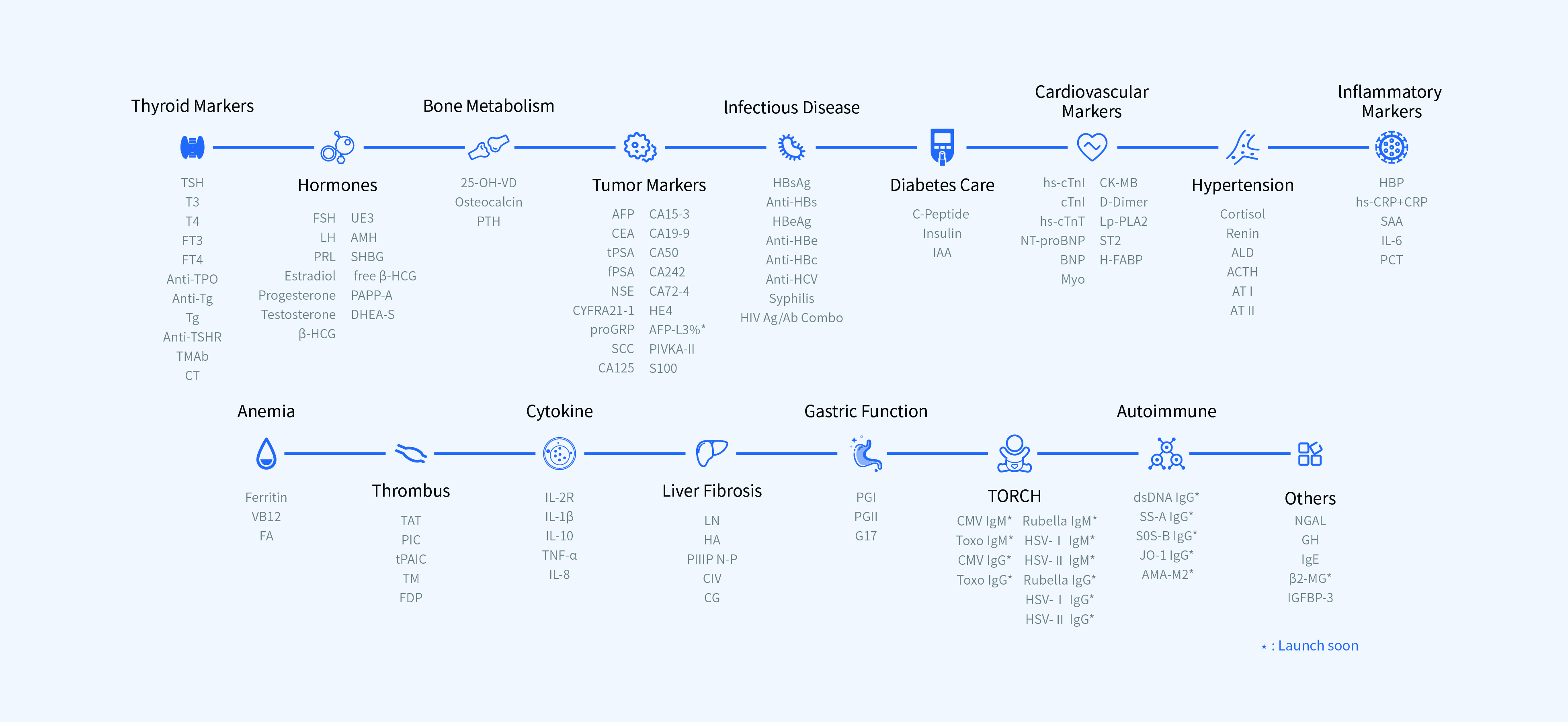

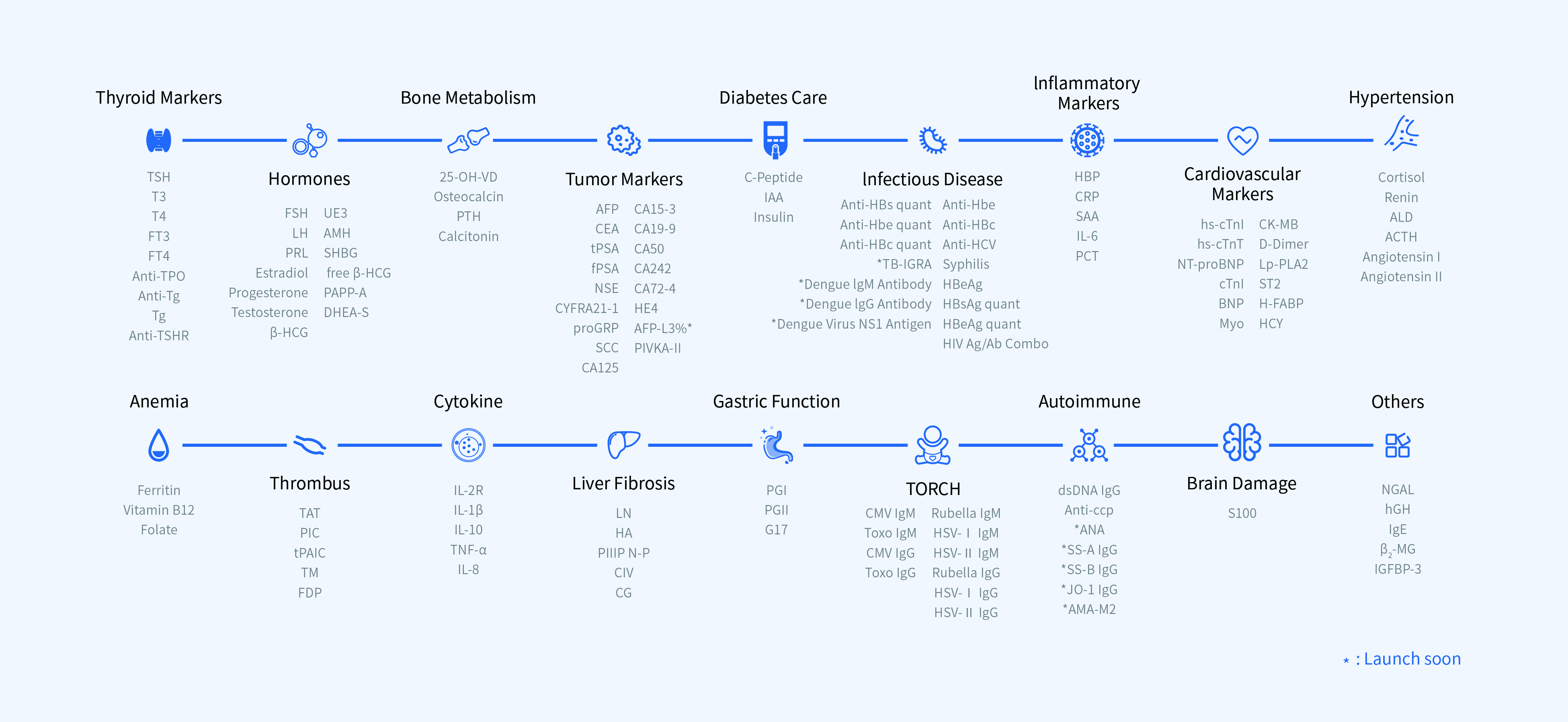

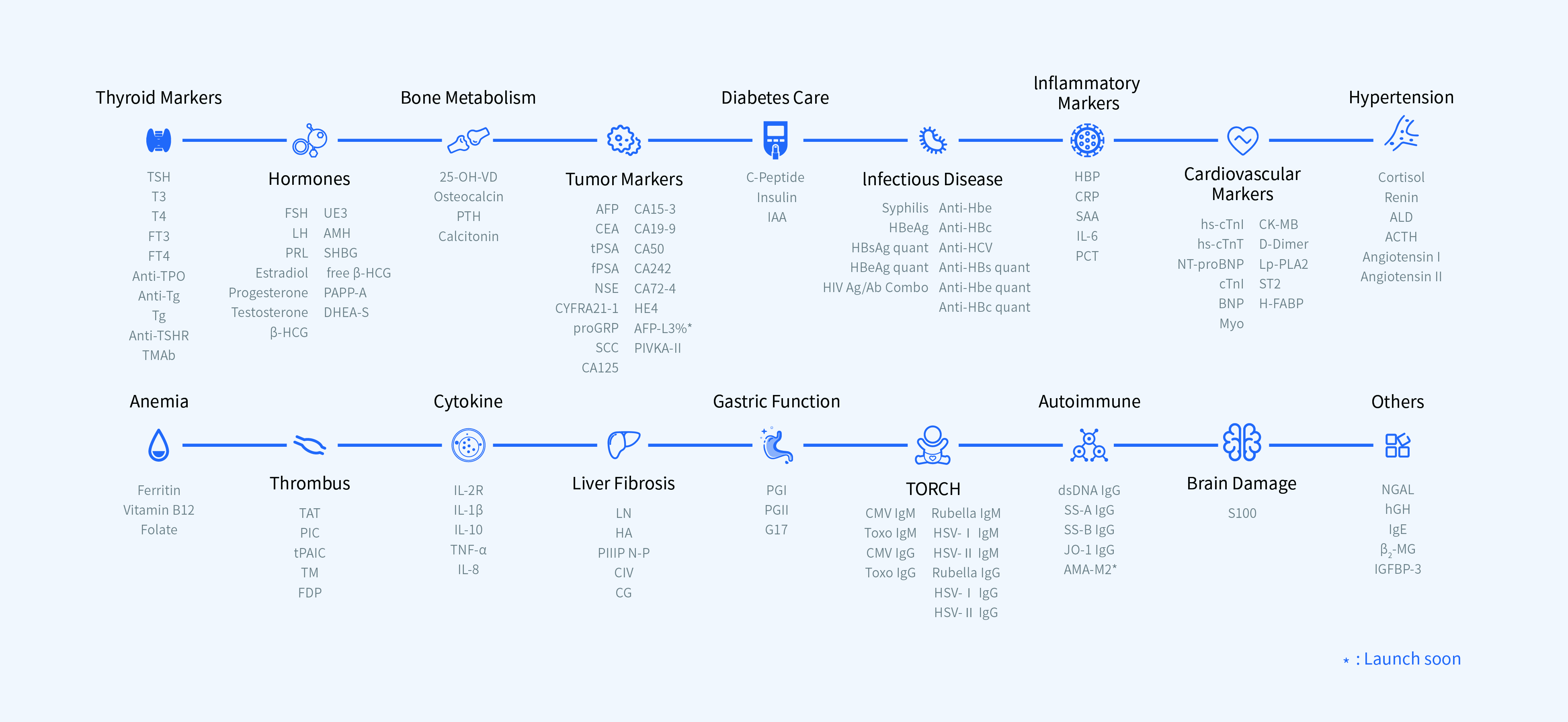

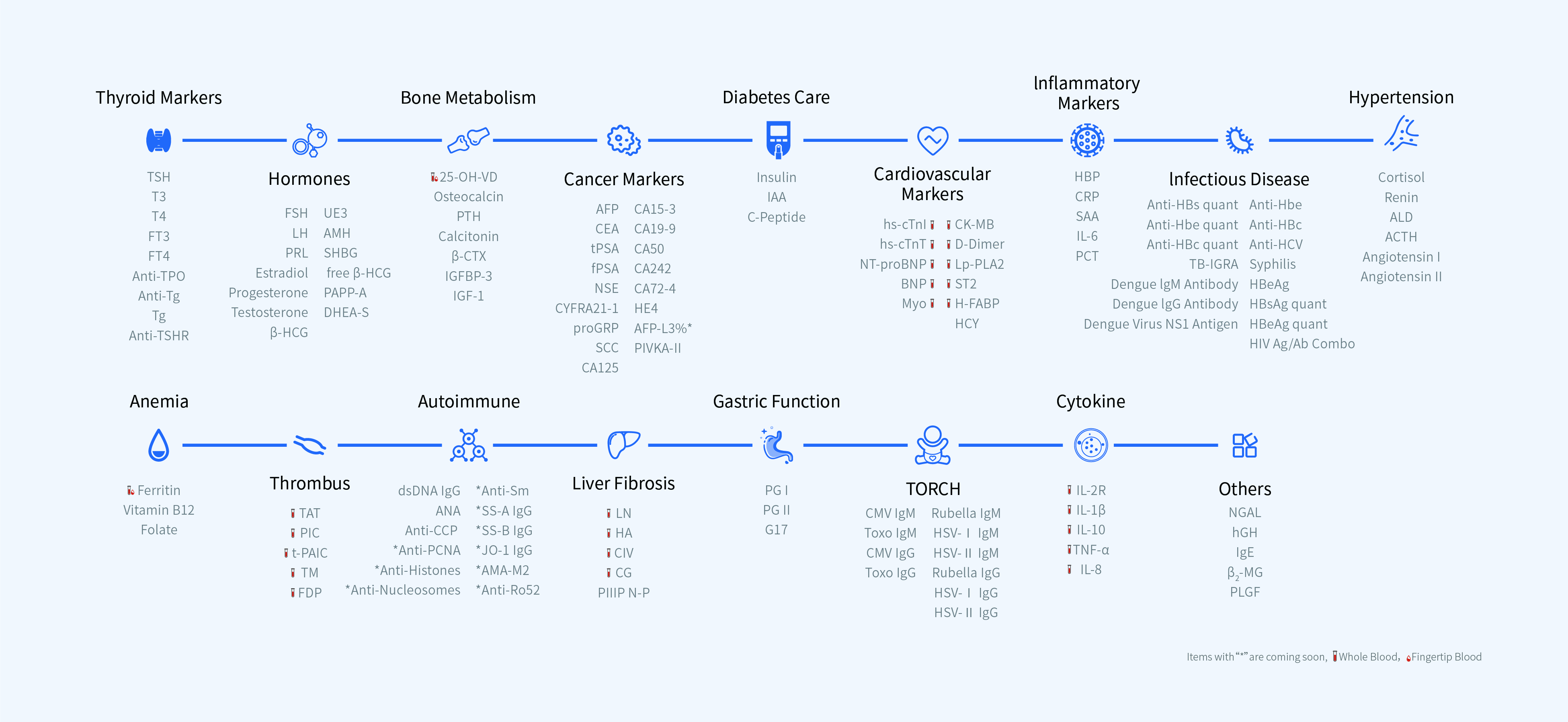

Test Items: 118 items. Up to 85 items tested simultaneously
Test Speed: Up to 400 T/H
Fastest Time for the First Result：12 min
Sample Volume: 10 uL~150 uL (1 uL increment)
Sample Loading：Sample loading by tracks, sample/return/emergency track
Maximum loading capacity: 190 sample positions
Reagent Volume: 10 uL~150 uL (0.1 uL increment)
Reagent Tray: 30 reagent positions
Cooling function: internal air circulation cooling with a range of 4~8℃
Cuvettes：Using mainstream circular cuvettes, up to 2000 can be stored in hopper at a time
Incubation Temperature: 37±0.2°C
Preheating Time：<15 min
Magnetic Separator Cleaning: Four-step magnetic separation, four-step cleaning
Dimensions: 1100 mm (L) x 930 mm (W) x 1200 mm (H)
