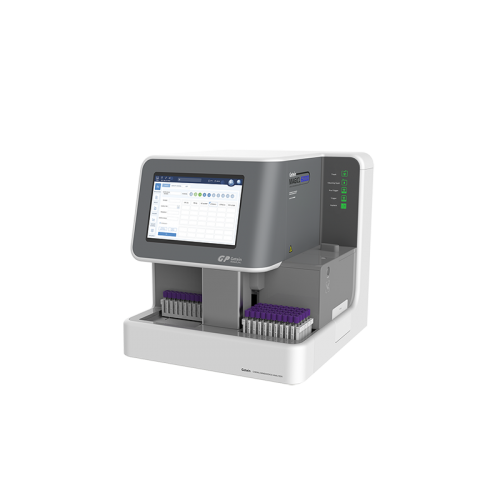

Key Features Compact Design Bench top design Relatively lighter weight: 80 kg High Efficiency Throughput: up to 200 T/HFastest time for the first result: 12 min Dual-Tray Consumable Design 2 independent consumable trays, support replacement without pause 140 reaction cups per tray Smooth Reagent Management 24 reagent positions, support online loading PE film puncture technology, preventing reagents from evaporationEquipped with RFID, automatic identification of reagent information Application Scenarios Medical Laboratories Clinics Health Check-up Center Test Menu Technical Specifications Test Principle: Acridinium ester direct chemiluminescence Throughput: Up to 200 T/H Fastest Time for the First Result: 12 min Reagent Positions: 24 Sample Positions: 50 Sample Type: Serum, plasma, urine, fingertip blood Application Scenarios: Laboratory, Clinics, Emergency, ICU, Wards Sampling Method: Steel needle STAT: Support STAT mode Sensing Functions: Liquid level detection, residual monitoring of reagent and sample, anti-collision Reaction Cups: 2 individuals consumble trays with 140 reaction cups each Reaction Temperature: 37℃±0.5℃ Magnetic Seperation & Washing: 3-step magnetic separation and 3-step washing Dimensions: 685 mm(L)*690 mm(W)*660 mm(H) Weight: 80 kg
Key Features Fast and accurate tests with small footprint High throughput at 400 T/H can satisfy needs from different hospitals and laboratories Compact footprint, maximizing space utilization efficiency Flexible expansion for modular system Support expansion of centrifuge and decapper module / analysis modules Flexible combination of 4 analysis modules at most, fulfilling requirements from multiple laboratories High automation level Automatic sample loading and scanning, automatic weight balanced in centrifuge module without manual operation Intelligent software system Support auto-dilution and auto-retests Monitor real-time instrument status, testing status, reagent reserve and consumables status Application Scenarios Medical Laboratories Indipendent Clinical Laboratory Health Check-up Center Test Menu Technical Specifications Methodology: Acridinium ester direct chemiluminescence Analysis methods: Sandwich method, competition method Test Items: 118 items. Up to 85 items tested simultaneously Test Speed: Up to 400 T/H Fastest Time for the First Result：12 min Sample Volume: 10 uL~150 uL (1 uL increment) Sample Loading：Sample loading by tracks, sample/return/emergency track Maximum loading capacity: 190 sample positions Reagent Volume: 10 uL~150 uL (0.1 uL increment) Reagent Tray: 30 reagent positions Cooling function: internal air circulation cooling with a range of 4~8℃ Cuvettes：Using mainstream circular cuvettes, up to 2000 can be stored in hopper at a time Incubation Temperature: 37±0.2°C Preheating Time：<15 min Magnetic Separator Cleaning: Four-step magnetic separation, four-step cleaning Dimensions: 1100 mm (L) x 930 mm (W) x 1200 mm (H)
